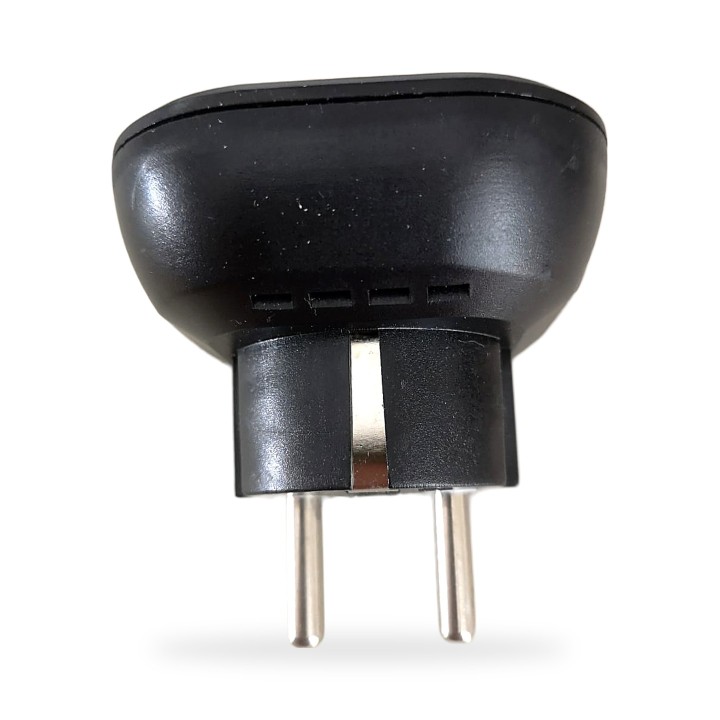

Check the earthing of your socket – in seconds
Grounding sheets, grounding mats and grounding plugs are connected to earth via the protective earth of the socket. If the protective earth is not connected or is interrupted, there is no connection. The socket tester shows you beforehand whether the socket is earthed – a good match for the grounding plug and the grounding sheet.
How to check a socket
- Plug the tester into the socket.

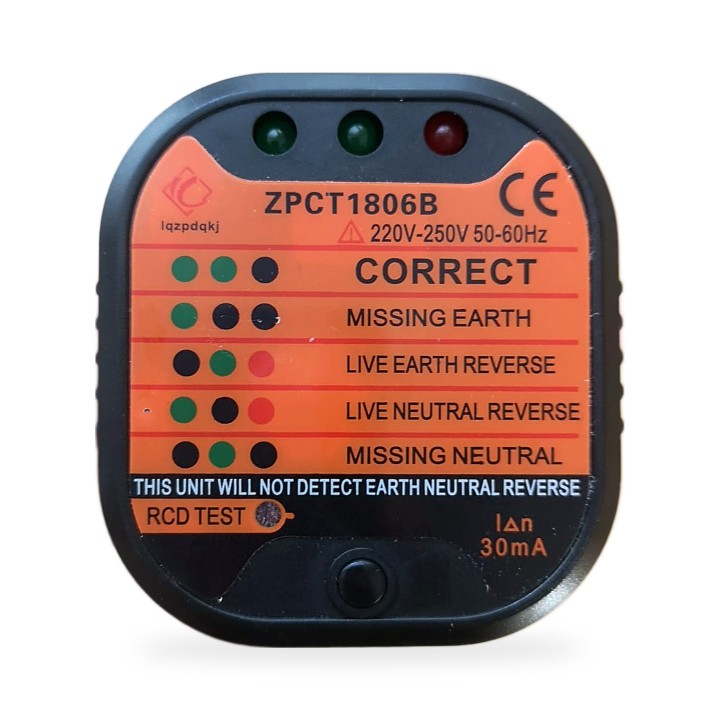

- Read the three LEDs and compare them with the table below (or on the device).
- Unplug the tester.
The indications
| LED 1 |
LED 2 |
LED 3 |
Meaning |
| ● |
● |
○ |
Correctly wired |
| ● |
○ |
○ |
Protective earth missing |
| ○ |
● |
● |
Live and earth reversed |
| ● |
○ |
● |
Live and neutral reversed |
| ○ |
● |
○ |
Neutral missing |
LED 1 is the left LED when the printing is readable in front of you.
Good to know
- Schuko sockets are not polarised: depending on which way round the tester is plugged in, it shows “live and neutral reversed”. With Schuko this is not a wiring fault.
- The tester does not detect neutral and earth being reversed and does not measure earth resistance.
- It does not replace an inspection by a qualified electrician. If it shows a fault, have the socket checked by an electrician.
RCD test (30 mA)
The “RCD TEST” button creates a small residual current. A working 30 mA RCD will trip and the circuit is switched off. Only press the button deliberately: every device on this circuit switches off, e.g. a computer or fridge. Then switch the RCD in the fuse box back on. If it does not trip, have the installation checked by an electrician.
Technical data
- Type: ZPCT1806B
- Rated voltage: 220–250 V AC, 50–60 Hz
- RCD test current: 30 mA (IΔn)
- Display: 3 LEDs

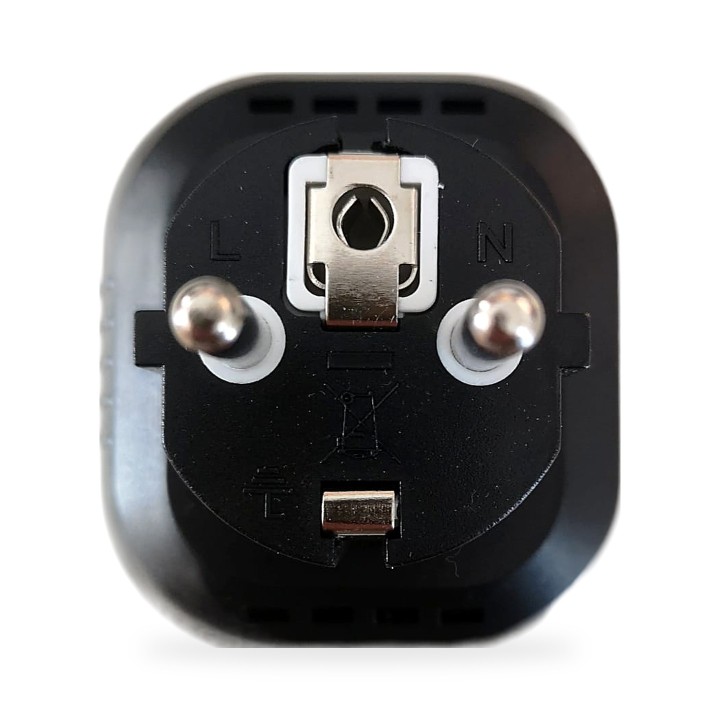

- Plug: Schuko with opening for earth pin (type E/F)
Contents
- 1 socket tester ZPCT1806B
- Quick guide (DE, CS, IT, EN)
Safety information
- Only use on sockets with 220–250 V AC.
- Do not use if the housing or plug is damaged. Do not open.
- Only use indoors in dry conditions.
- Keep away from children.
Disposal
Electrical devices do not belong in household waste (crossed-out wheelie bin symbol). Please take the device to a collection point for waste electrical equipment.
